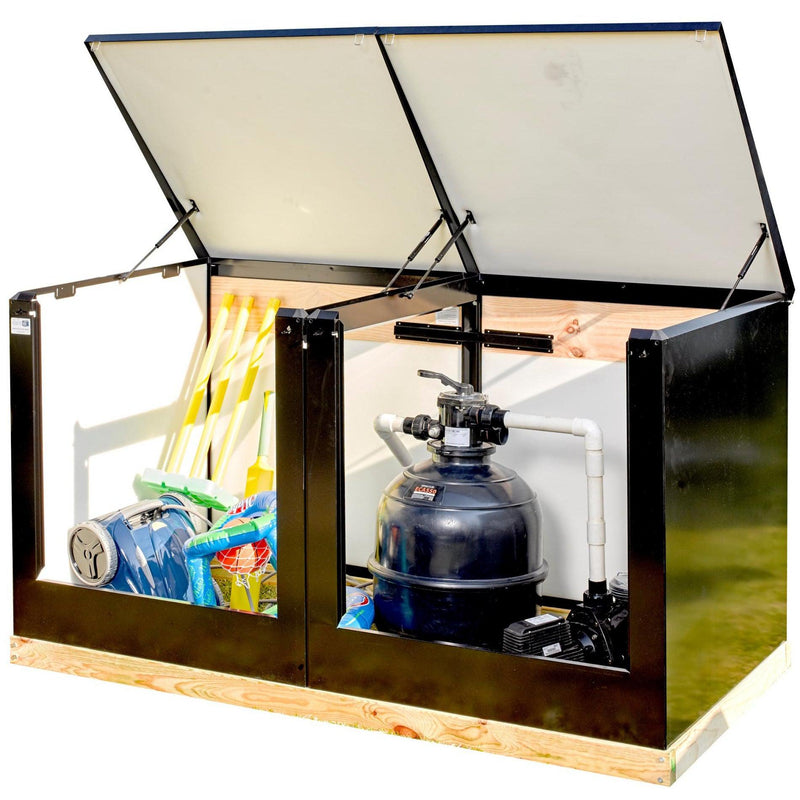

Acoustic Box Soundproof Pump & Filter Enclosure Cover (Backless) - 2218mm Wide

Specifications:

• Reduce noise by 80% - 29/400 grade foam on every panel reducing noise and certified by an independent Acoustic Engineer
• Assemble in as little as 15 minutes - NO NUTS, BOLTS or any TOOLS needed.
• Save money on equipment- Inferior or cheaper alternatives may cost you more money in the long run as they may be poorly ventilated and damage your equipment.
• Save money on running costs - A properly soundproofed box means that you can save money on electricity by turning on your equipment at night / during off-peak
• Ventilation gaps - There're also 25mm ventilation gaps at the front and back of the box allowing for proper air-flow in and out of the box to protect the equipment.
• Made of 0.9mm Australian made (BlueScope™) galvanized steel with a thick (Dulux Colorbond™) powder coat finish
• Come with clear 3D  & Illustrated installation instructions
• 10 Standard colours - custom colours available on request for a small fee
• 100% Australian Made
• models that are <1.7m in width (single) take 15-20 minutes to assemble and models that are >1.7m (double) take 45 - 60 minutes
• The panels are joined together at the bottom by 4 corner brackets and locked at the top by 4 corner caps.
• The box comes flat packed

• Download the specifications here

Notes with regards to measurements:

• The external measurements are actually the same as the internal measurements throughout the box with the exception of the bottom and top of the box - where the metal bends to allow for the acoustic foaming to be housed.
• It is advisable to allow for an additional 10-20mm on all asides of your Concrete slab (if laying the box on a slab)
• The lid requires 45mm of clearance at the back to fully open. So pls allow this (or more) if placing the box against a wall or other hard surfaces.

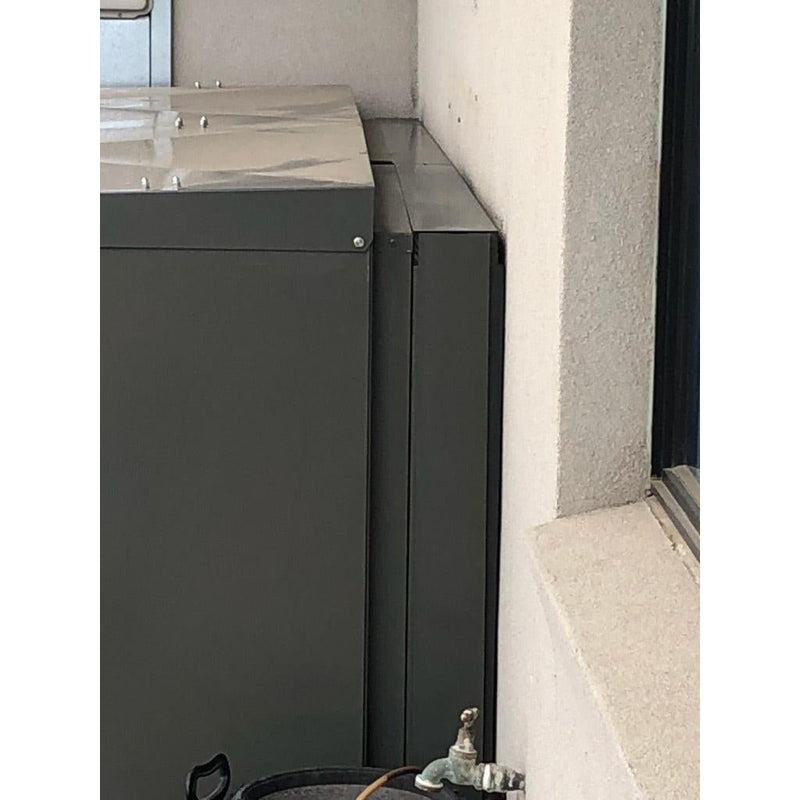

• Backless models are always 50mm deeper than the standard models
• They are needed when there’s less than a 50mm gap from the equipment (EG a pipe of the filter) and the wall / fence. You will also need to allow approx. 20mm to slide in the rear panel i.e. 65-70mm in total.
• The design of the backless models means the lid won’t hit the wall or fence behind when fully erect
• Backless models have 3 additional parts (or multiples thereof for the larger models) instead of the rear panels. These are 2 wall strips ; one on either side of the enclosure and horizontal bridge which goes over from one wall strip to the other to fully enclose the box.

*Please note images are for colour and size reference, measure and select the correct size you require with the colour of your choice.
