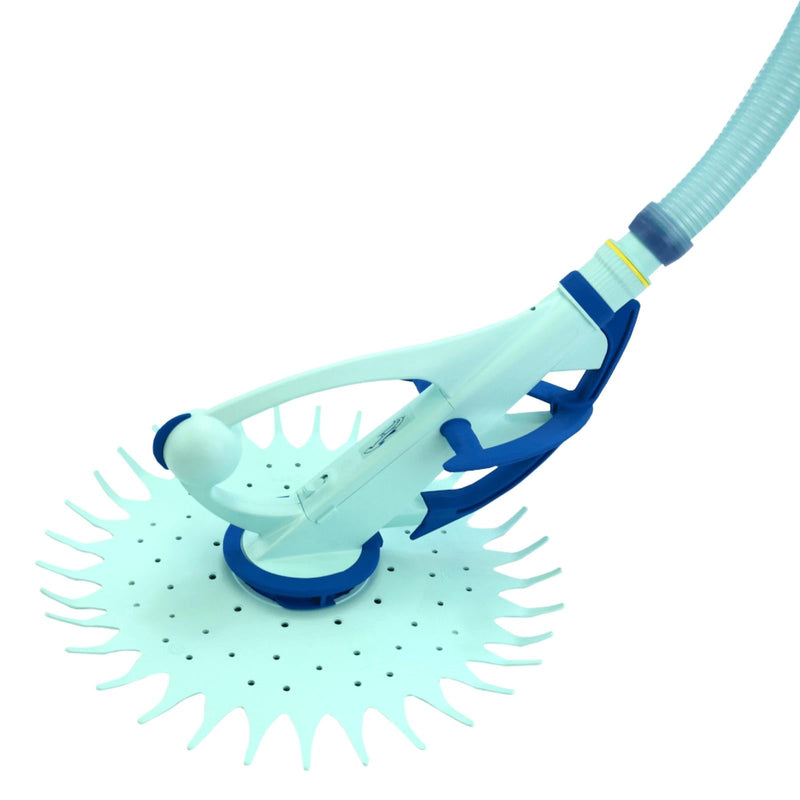

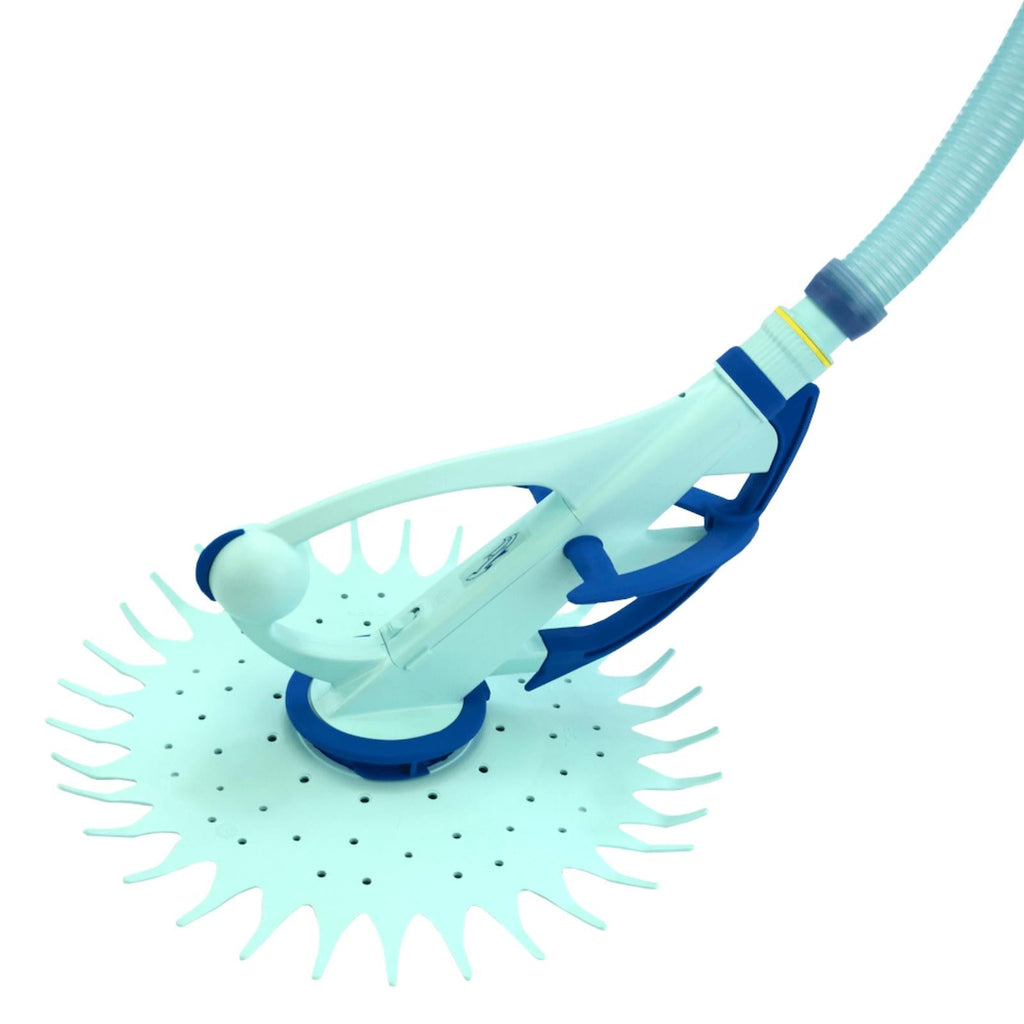

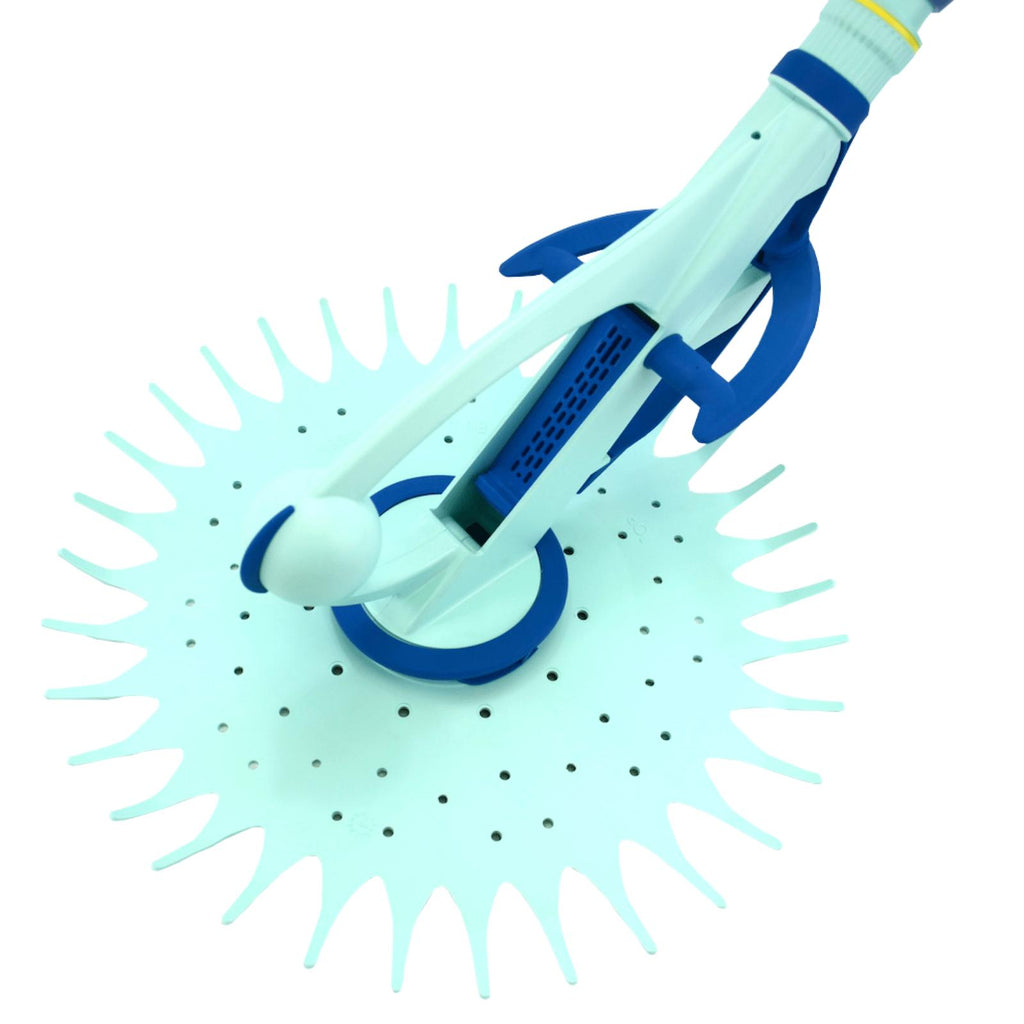

Onga Hammerhead Automatic Pool Cleaner

The Onga Hammerhead Automatic Pool Cleaner is an easy, affordable solution for your pool cleaning needs. Ideal for pools of all sizes. Make pool cleaning a breeze, hook up your Onga Hammerhead Automatic Pool Cleaner and relax as it goes about cleaning the pool!

Key Features:

• Onga's Hammer Head pool cleaner shares many of the design features of the most popular automatic suction side vacuum in history
• Silent Flapper:  This sole operational moving part creates the kinetic energy that powers Hammer Head around your pool. It is a simple and dependable propulsion system. Only one operational moving part
• Built-in bumper: ensures freedom of movement around steps, ladders and other obstacles
• All parts are UV stable and chemical resistant for years of dependable service.
• Only one operational moving part,
• No wheels or gears to jam or diaphragms to replace
• No expensive booster pump to buy and operate…it uses your pool’s existing filtration system.
• Sleek, compact design increases manoeuvrability for best cleaning performance
• 3 year limited warranty *Warranty excludes skirt, seals and wearing sole which are considered consumable wear and tear items and are only covered by 1-year warranty. This is standard with all brands of cleaners.
• All components included - ready to start cleaning your pool

Whats in the box?

• 1 x External Body
• 1 x Suction Seal
• 1 x Swivel & Nut Assembly
• 1 x Threaded Adapter
• 1 x Skimmer Adapter Cuff
• 1 x Adjustable Regulator Valve
• 1 x 90 Degree Elbow
• 1 x Flow Gauge
• 2 x Hose Weight

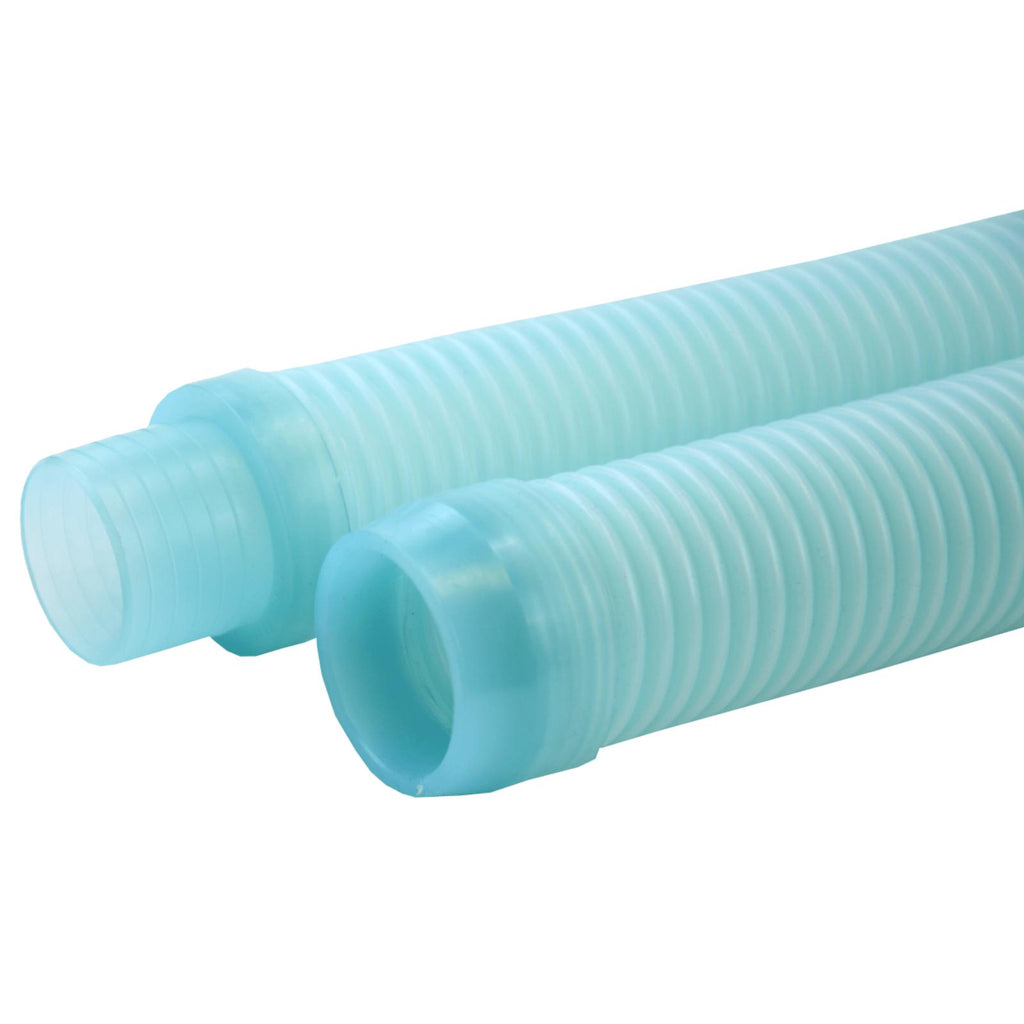

• 10 x Hose 1m Sections
• 1 x Installation Instructions
• 1 x Warranty Card

Easy Pool Suction Cleaner Assembly and Installation Guide:

Getting your new suction cleaner up and running is not as complicated as many people think and you can actually set one up in under five minutes!

• Install the skirt over the base (wearing sole) of the suction cleaner.
• If you cleaner uses wings, attach them from the rear to the front and clip them together.
• Install the deflector ring or bumper (if you skip this, the cleaner has the tendency to get caught in corners).
• Connect the hose lengths, just enough to cover the size of your pool. If you have extras, just keep them as spares.
• Submerge the cleaner in your pool and hold the end of the hose against a return jet to blow out the air in the hoses. Once the cleaner has stopped bubbling, connect the hose to your skimmer’s vacuum plate.
• If you’re using a flow valve, adjust the flow to the required level.
• Attach hose weights if your hose is pulling your cleaner up, and hose floats if your hose is dragging or getting tangled up.
• After using, disassemble your cleaner, give it a hose down with fresh water and store away from direct sunlight. Don’t forget to empty out your skimmer and pump baskets as well after cleaning the pool with a suction cleaner.

If you’re more of a visual-type person, here’s a video of how a suction cleaner is assembled. (It will open in a new window, don’t worry)
