Water TechniX Eclipse AF75 Cartridge Filter – Advanced Filtration for a Crystal-Clear Pool
The Water TechniX Eclipse AF75 Cartridge Filter provides high-performance filtration at an affordable price, offering a cost-effective alternative to OEM filters. Engineered for durability and efficiency, it features impact-resistant, UV-stabilised PVC and a high-performance filter element with Trilobal material that captures up to four times more dirt than standard filters. With a reinforced design and a hassle-free installation process, this filter ensures year-round water clarity for pools up to 60,000 litres.
What are the key technical specifications of the Eclipse Cartridge Filter?
Model AF75 offers a 75 sq ft filter area with a maximum flow rate of 283 LPM and is engineered for pools up to 60,000 liters.
How effective is the filter element in capturing dirt?
The filter uses Trilobal material, which is engineered to capture up to four times more dirt than standard cartridge filters.
What pool volume is this filter designed to service?
It is designed to maintain effective filtration in pools with volumes up to 60,000 liters.
What is the maximum flow rate operating specification?
The maximum flow rate supported by the filter is 283 liters per minute (LPM).
What are the physical dimensions of the filter unit?
The unit measures approximately 747 mm in overall height and 225 mm in overall width.
Key Features
- Impact-resistant, anti-corrosive PVC tank designed for long-lasting durability
- Trilobal filter material captures up to four times more dirt for superior filtration
- Reinforced pleats for added strength and longer filter life

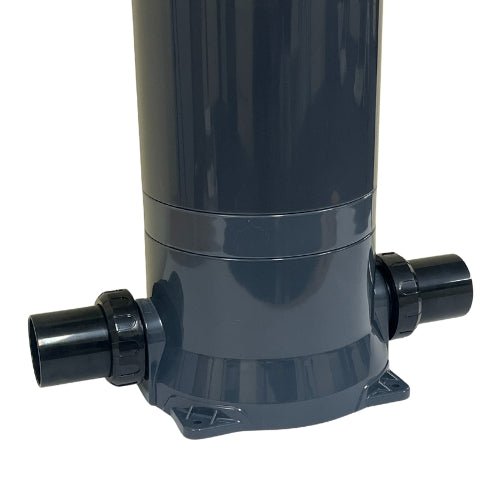

- Three inlets and one outlet for custom plumbing configurations

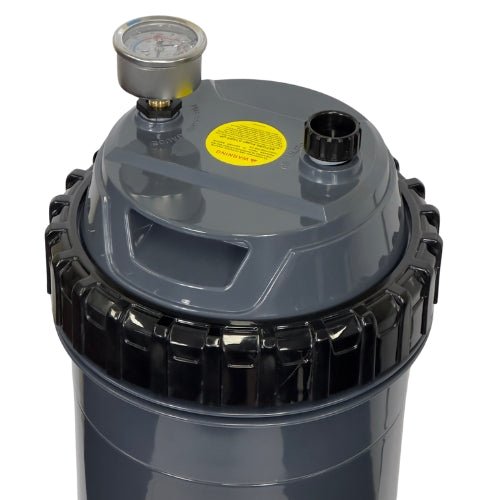

- Ergonomic handles on the tank lid for easy maintenance
- Screw-type air bleed valve for quick and simple start-up
- Stainless steel, oil-filled pressure gauge for accurate readings
- Compatible with salt, mineral, chlorine, and magnesium pools
- Self-sealing 50mm barrel unions with silicone O-rings for a secure fit
Specifications
- Model: AF75
- Maximum flow rate: 283 LPM
- Maximum pool size: 60,000 litres
- Overall height: 747cm
- Overall width: 225cm
- Warranty: 24 months on the tank, 12 months on the filter element
- Requires two reducing bushes (not included) for 40mm pipe applications
Built to Last
After five years of refinements and rigorous testing, the Water TechniX Eclipse Cartridge Filter is engineered to handle the toughest conditions. Pressure-tested for durability and built with a reinforced filter core, it offers superior strength compared to alternative brands. Backed by a 24-month tank warranty, it provides a long-lasting and reliable filtration solution.
Cartridge or media (sand/glass/zeolite) filter that delivers crystal-clear water and strong flow. Pick the right filter size for your pool volume and pump rate; suits 40/50 mm plumbing with pressure gauge and multiport/backwash (media) or quick hose-off cleans (cartridge). Fine-micron clarity, straightforward install, and low-maintenance performance for salt, mineral, or chlorine pools.
Upgrade to the Water TechniX Eclipse AF75 Cartridge Filter today for effortless maintenance and crystal-clear water all year round.
