Water TechniX Vivid LED Surface Mount Retro Pool Light Blue

What are the technical specifications of this LED pool light?
It contains 252 blue LEDs that deliver around 320 lumens with a 120° beam angle while using 18 watts of power.

How does the design protect against water ingress?

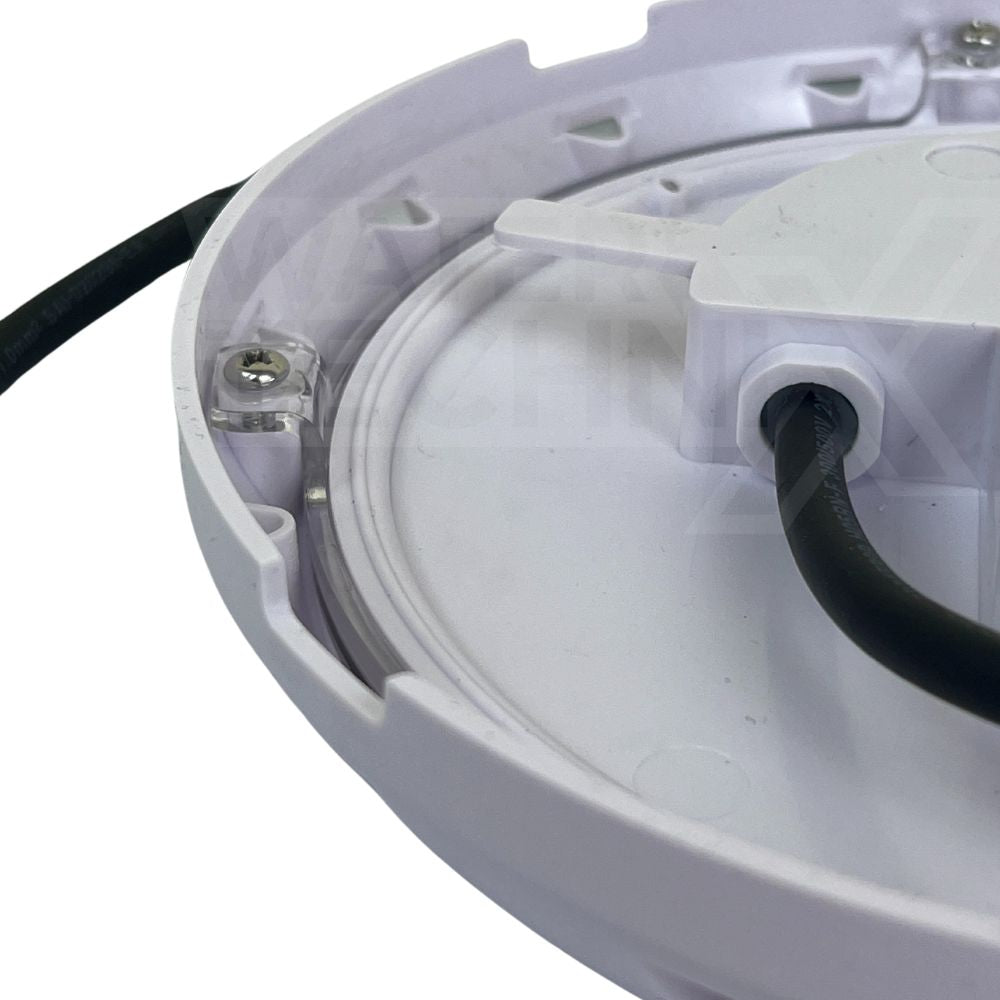

The light features a resin-filled construction designed to keep water out and prevent leaks.

What is the expected operating lifespan?
It is engineered for over 20,000 hours of lighted operation.

How is the light installed in an existing pool setup?
It is a retrofit design and comes with a bracket, mounting hardware, and a 1m flexible PVC cable for easy installation.

Is this pool light suitable for different pool types?
Yes, it has been designed to work in various pool environments, including saltwater, chlorine, and mineral pools.

Water TechniX Vivid Blue LED Pool Light – Bright, Energy-Efficient, and Built for Australian Pools

The Water TechniX Vivid Blue LED Pool Light delivers a cost-effective and high-quality lighting solution for Australian pools. Designed for easy retrofitting, it features 252 powerful LED chips that output 320 lumens with a 120-degree beam angle, ensuring bright and even illumination. The resin-filled light body prevents leaks and water ingress, offering long-lasting performance. With a 24-month replacement warranty and local Australian support, it is a reliable and durable upgrade for any pool.

Key Features

• Resin-filled light body to prevent leaks and water ingress
• 252 LED chips with a bright 320-lumen output
• 18W power with a 120-degree beam angle for wide coverage
• DIY-friendly waterproof wire connector for quick installation

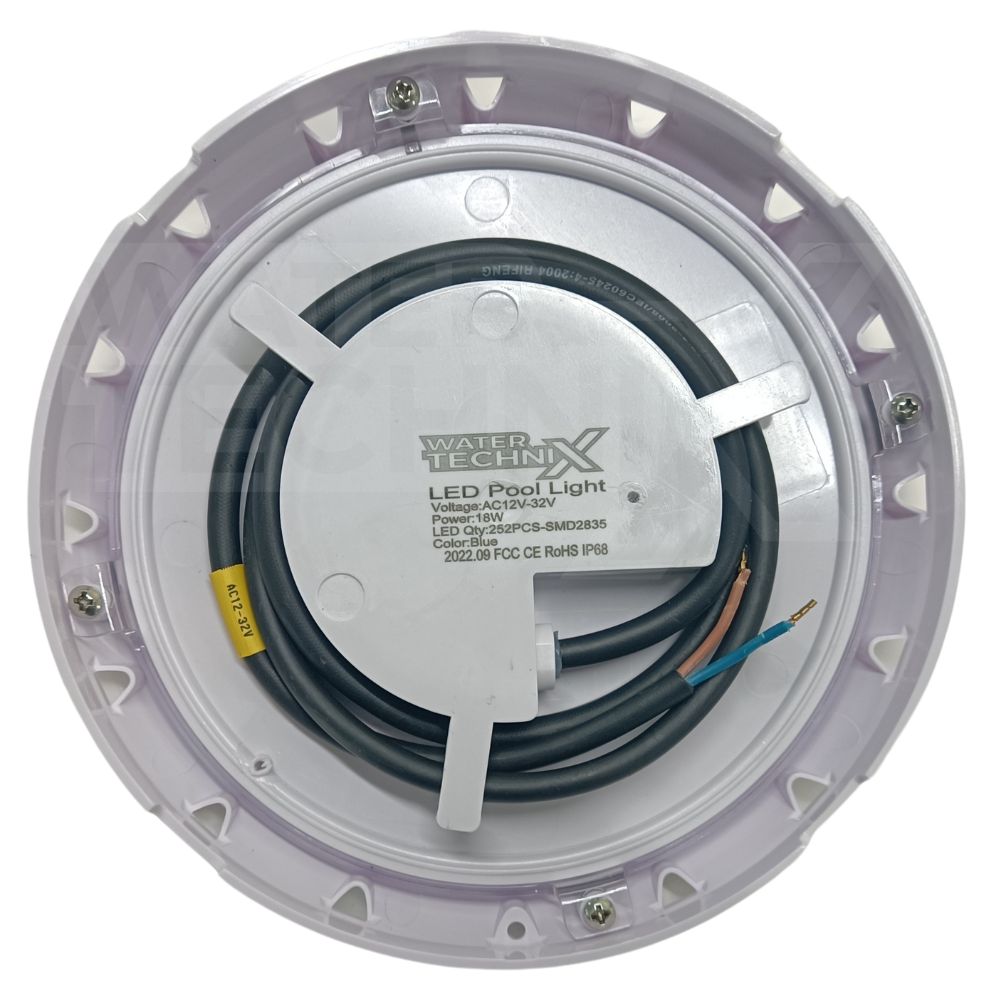

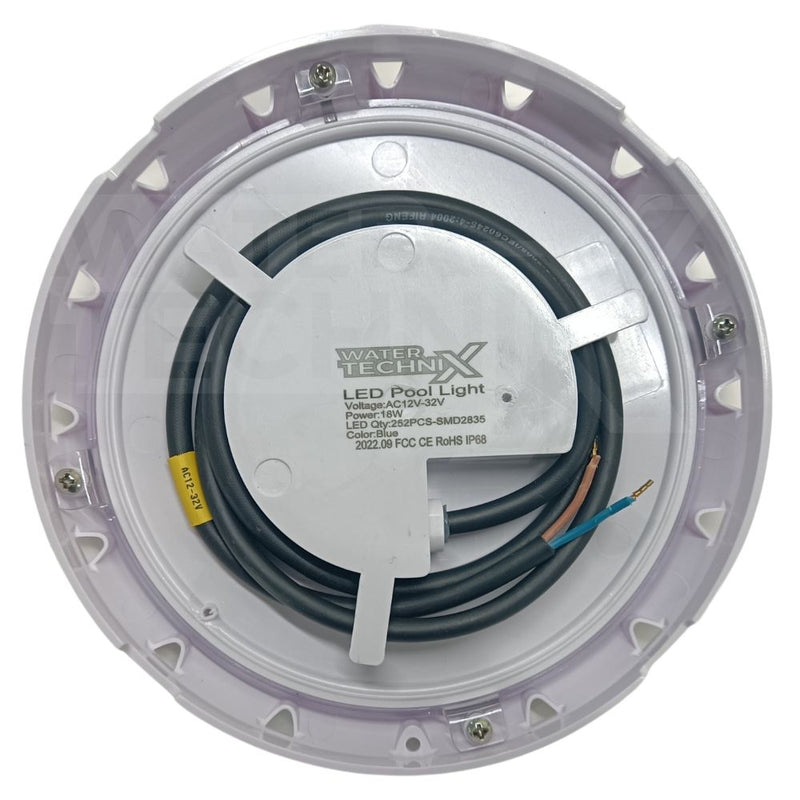

• Includes 1m of flexible PVC cable (0.75mm, 2-core)
• Slimline design with a total diameter of 235mm and a thickness of 56mm
• Tested for over 20,000 hours of working life

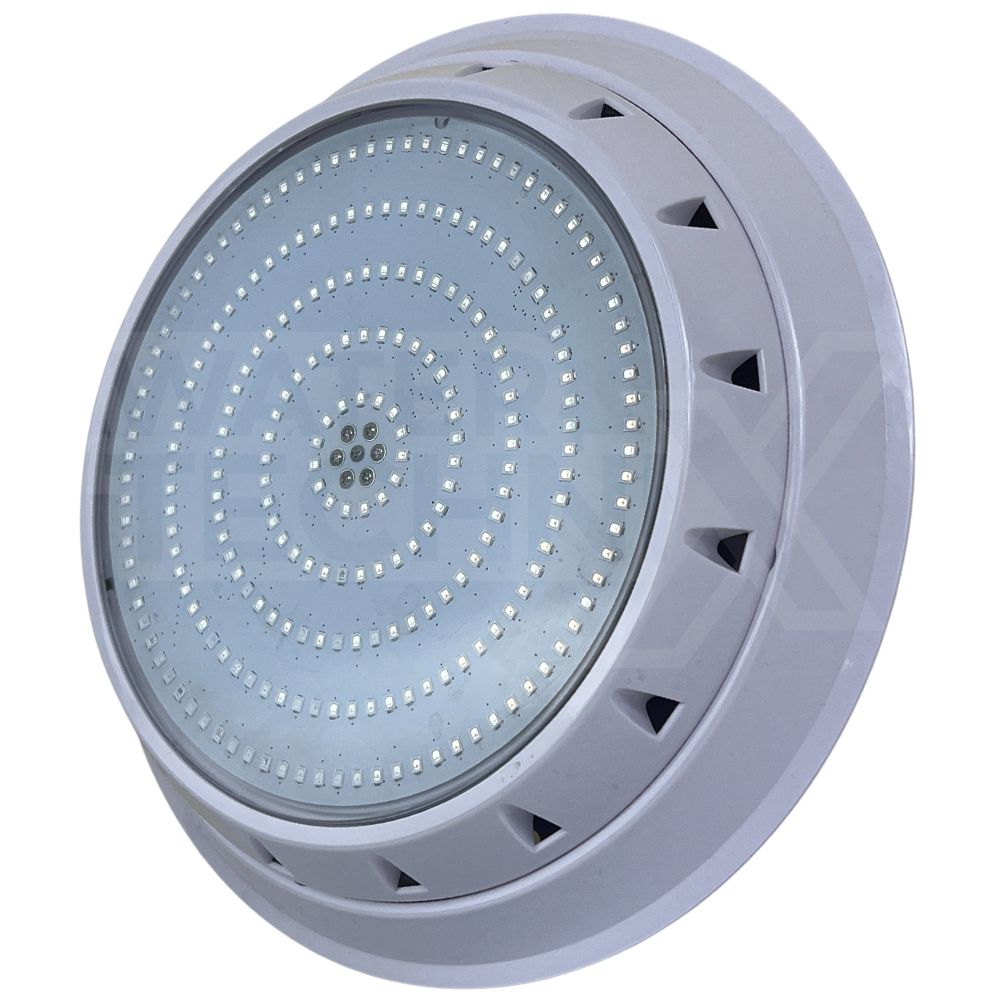

• Clear lens with built-in blue LEDs for vibrant illumination
• Compatible with all existing AC transformers from 12V to 24V
• Includes a surface-mount retrofit bracket and screws for hassle-free installation
• Check your local state regulations regarding installation requirements by authorised electrician if you are in QLD you can see the requirement here
• Download the product brochure here

Specifications

• Power: 18W
• Lumen output: 320
• Beam angle: 120 degrees
• Working hours: 20,000+
• Transformer compatibility: 12V - 24V AC
• Warranty: 24 months replacement

Built to Last

Tested and refined over three years, the Water TechniX Vivid Blue LED Pool Light is designed for long-term performance. The included retrofit bracket ensures seamless compatibility with most existing surface-mounted pool lights, making it a quick and easy upgrade. With reliable resin-filled construction and Australian local support, it provides peace of mind and effortless installation.

Compatible with the following brands

• Waterco
• Filtrite
• Aquaquip
• Spa Electrics
• Stroud SM400, Stroud C150
• Swimworld
• Poolrite
• Autumn Solar, Questa, Chameleon

Installation Guide

Check your local state regulations regarding installation requirements by authorised electrician if you are in QLD you can see the requirement here

Connecting with a cable joiner

1. Cut the old cable and expose fresh wires.
2. Strip new wires to 1cm length and fold them back on themselves.
3. Insert into the joiner, secure the screw pins, and tightly assemble the cable housing.

Recommended installation for fibreglass pools

• Lower the water level below the light.
• Remove the existing hook or bracket, leaving the cable gland in place for watertight protection.
• Secure the retrofit bracket using the existing screw holes or adhesive.
• Apply neutral-curing silicone to the screws and screw holes to prevent water ingress.
• Connect the light cable using the quick-fit plug and coil the excess cable behind the light.
• Insert the bottom tab of the light into the plate and secure it with the included screws.

Upgrade to the Water TechniX Vivid LED Pool Light today for an energy-efficient, long-lasting lighting solution that enhances your pool’s look and visibility all year round.

*** NOTE : Current Australian National Construction regulations stipulate all pool lights installed must be 600mm ( 60cm ) from normal waterline to centre of the light fixture location ***
