What are the key technical specifications?
The CF100 provides a 100 sq ft filtration area with an impact-resistant, UV‑stabilised PVC tank and a high-performance Trilobal filter element. It supports a maximum flow rate of 382 LPM and is designed for pools up to 80,000 liters.
How does the filter achieve high dirt-capturing efficiency?
It uses Trilobal filter material that can capture up to four times more dirt than standard filters, with reinforced pleats that help maintain consistent filtration performance over time.
What pool volume is this filter designed for?
The unit is engineered to effectively filter pools with a maximum volume of 80,000 liters.
What design features aid in maintenance and installation?
The filter is built with an ergonomic lid featuring handles for easy access, a screw-type air bleed valve for quick system startup, and self‑sealing 50mm barrel unions for secure and straightforward plumbing connections.
What are the physical dimensions and details of the replacement element?
The overall unit measures approximately 91 cm in height and 23 cm in width. The replacement filter element is sized at 719 mm (L) x 185 mm (D) with a 77 mm opening, ensuring full coverage for the 100 sq ft filtration area.

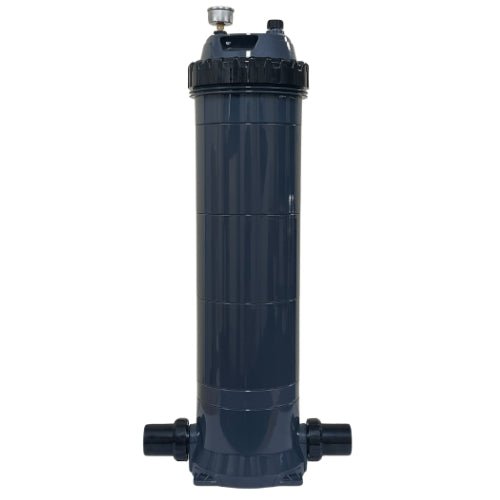

Water TechniX Eclipse CF100 Cartridge Filter – High-Performance Filtration for a Crystal-Clear Pool
The Water TechniX Eclipse CF100 Cartridge Filter is designed to provide superior pool filtration at an affordable price. Engineered with impact-resistant, UV-stabilised PVC and a high-performance Trilobal filter element, it captures up to four times more dirt than standard filters. With reinforced pleats and a heavy-duty tank, this filter ensures durability, efficiency, and easy maintenance, making it a reliable choice for pools up to 80,000 litres.
Key Features
- Impact-resistant, anti-corrosive PVC tank for long-lasting durability
- Trilobal filter material captures up to four times more dirt for enhanced filtration
- Reinforced pleats prevent premature filter splitting and extend filter life

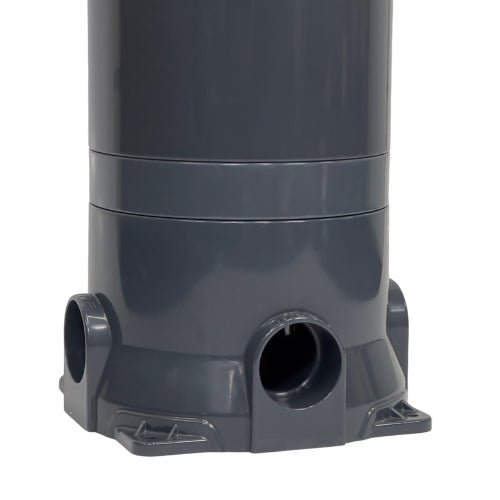

- Three inlets and one outlet for flexible plumbing configurations

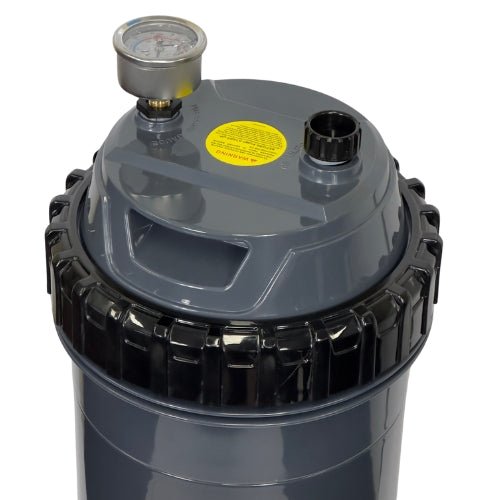

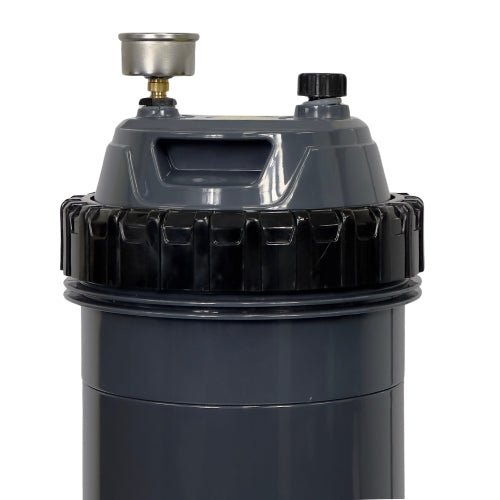

- Ergonomic handles on the tank lid for easy access and maintenance
- Screw-type air bleed valve for quick and simple start-up
- Stainless steel, oil-filled pressure gauge for precise pressure readings
- Compatible with salt, mineral, chlorine, and magnesium pools

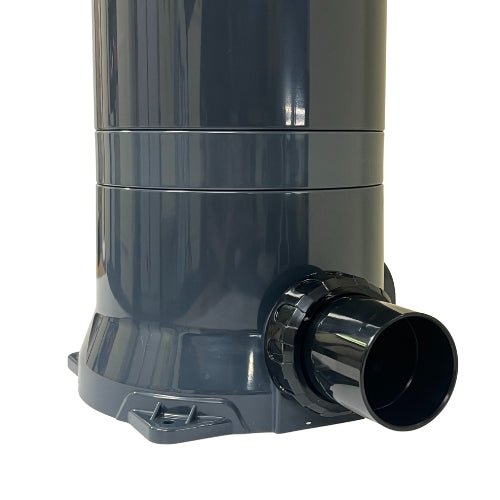

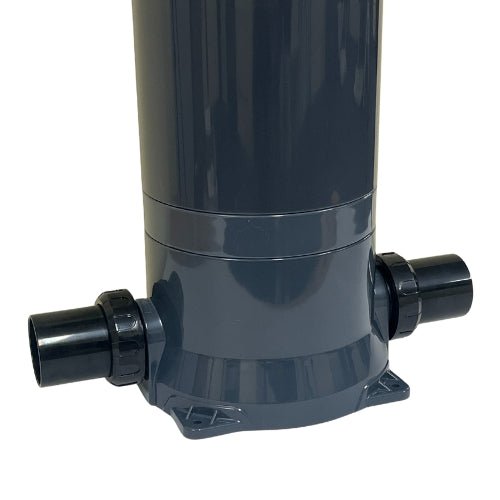

- Self-sealing 50mm barrel unions with silicone O-rings for a secure connection
Specifications
- Model: CF100
- Maximum flow rate: 382 LPM
- Maximum pool size: 80,000 litres
- Overall height: 91cm
- Overall width: 23cm
- Replacement Element is 719mm L x 185mm D x 77mm Hole
- Warranty: 24 months on the tank, 12 months on the filter element
- Requires two reducing brushes (not included) for 40mm pipe applications
Built to Last
The Water TechniX Eclipse Cartridge Filter has undergone five years of rigorous testing and refinements to ensure it meets the highest quality standards. Pressure-tested for durability and constructed with a reinforced filter core, it delivers reliable filtration even in harsh conditions. With a 24-month tank warranty, it offers a long-lasting, cost-effective solution for pool owners.
Upgrade to the Water TechniX Eclipse CF100 Cartridge Filter today and enjoy effortless pool maintenance with crystal-clear water all year round.
